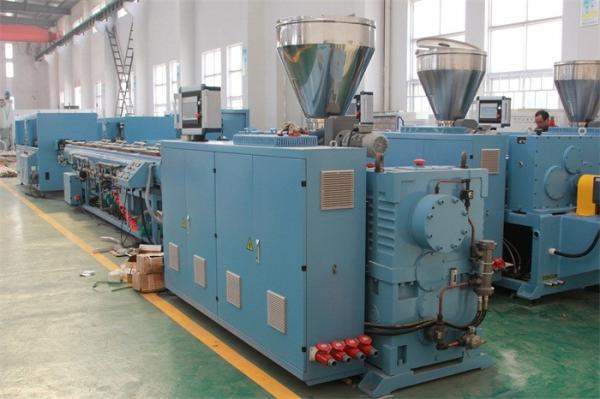

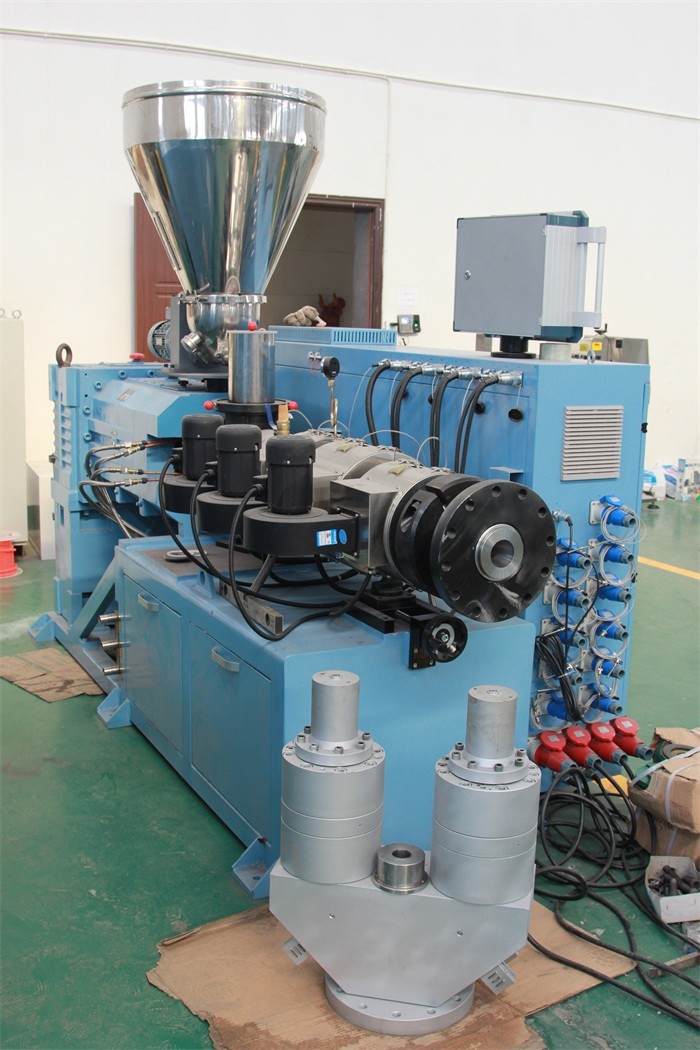

Conic PVC SJSZ65/132 twin screw extruder machine for make 50-200mm pipe
Product description:
SJSZ series conical twin screw extruder is a highly efficient agglomerating and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation, even plasticization and agglomeration, reliable quality and long servicing life.
Using PVC powder as raw material for a direct forming, the extruders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced feeding and self-cleaning mechanism.
Machines of this series have wide application. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastics into pipes, plates, bars, films, hollow cross-section products.
Features specifications:
- According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
- The screw is made by high precision special digital screw miller, extruding property can be highly harmonized.
- It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
- The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
- The electrical system has mainly applied imported parts, it has multiple alarm system, there are few problems which can be easily eliminated.
- The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be ±1℃.
Main technical parameter:
| Model | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 | SJSZ105 |
| Screw DIA(mm) | 51/105 | 65/132 | 80/156 | 92/188 | 105/216 |
| Qty of screw | 2 | 2 | 2 | 2 | 2 |
| Screw direction | Opposite and outer |
| Screw speed(rpm) | 1-37 | 1-34.7 | 1-36.9 | 1-33 | 1-32 |
| Screw length(mm) | 1065 | 1440 | 1800 | 2500 | 3330 |
| Structure | Conical mesh |
| Main motor power(kw) | 22 | 37 | 55 | 90 | 185 |
| Total power(kw) | 38 | 58 | 90 | 140 | 255 |
| Output(max: kg/h) | 135 | 250 | 450 | 800 | 1400 |
| Qty of barrel heating zone | 4 | 4 | 5 | 5 | 6 |
| Feeder | Screw dosing |
| Center height of machine(mm) | 1000 | 1000 | 1000 | 1100 | 1300 |
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
